Product Summary
The MC68HC11A1P high-performance microcontroller unit (MCUs) is based on the M68HC11 Family. This high speed, low power consumption chip has multiplexed buses and a fully static design.
Features
Features: (1)M68HC11 CPU; (2)Power Saving STOP and WAIT Modes; (3)8 Kbytes ROM; (4)512 Bytes of On-Chip EEPROM; (5)256 Bytes of On-Chip RAM (All Saved During Standby); (6)16-Bit Timer System; (7)8-Bit Pulse Accumulator; (8)Real-Time Interrupt Circuit; (9)Computer Operating Properly (COP) Watchdog System; (10)Synchronous Serial Peripheral Interface (SPI); (11)Asynchronous Nonreturn to Zero (NRZ) Serial Communications Interface (SCI); (12)8-Channel, 8-Bit Analog-to-Digital (A/D) Converter.

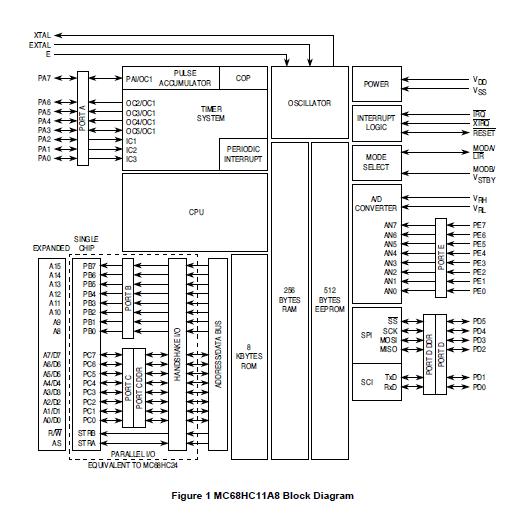

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

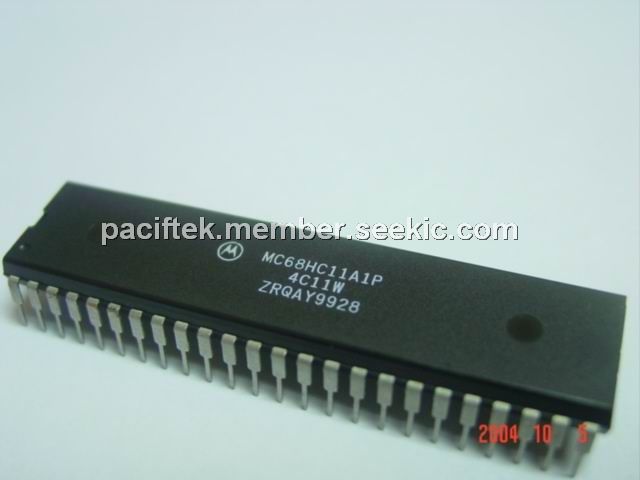

![]() MC68HC11A1P |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
