Product Summary
The MX25L4005AM2C-12G is a CMOS 4,194,304 bit serial Flash memory, which is configured as 524,288 x 8 internally. The MX25L4005AM2C-12G feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). SPI access to the device is enabled by CS# input.
Parametrics
MX25L4005AM2C-12G absolute maximum ratings: (1)ambient operating temperature: -40 to 85℃; (2)storage temperature: -55 to 125℃; (3)applied input voltage: -0.5 to 4.6V; (4)VCC to ground potential: -0.5 to 4.6V.
Features
MX25L4005AM2C-12G features: (1)Serial Peripheral Interface (SPI) compatible -- Mode 0 and Mode 3; (2)4,194,304 x 1 bit structure; (3)128 Equal Sectors with 4K byte each: Any Sector can be erased individually; (4)8 Equal Blocks with 64K byte each: Any Block can be erased individually; (5)Single Power Supply Operation.

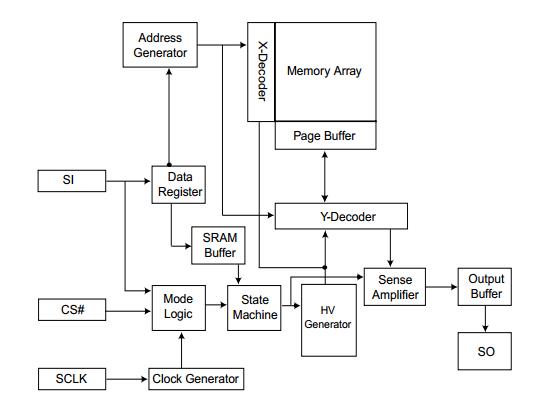

Diagrams
