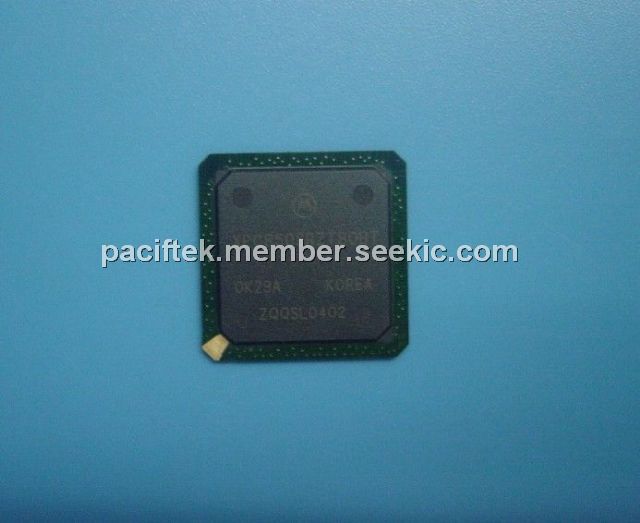

XPC850SRZT80BT

one-chip integrated microprocessor, BGA, Low-power support

Rated 5 Rating 5 | reviews | Write a review

Price:: US $12.03~12.16 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $12.03~12.16

PartNumber:: XPC850SRZT80BT

Brand:: Motorola, Inc - Motorola | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-09

From Other Seller

Part Number:XPC850SRZT80BT
US $12.03 - 12.16
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

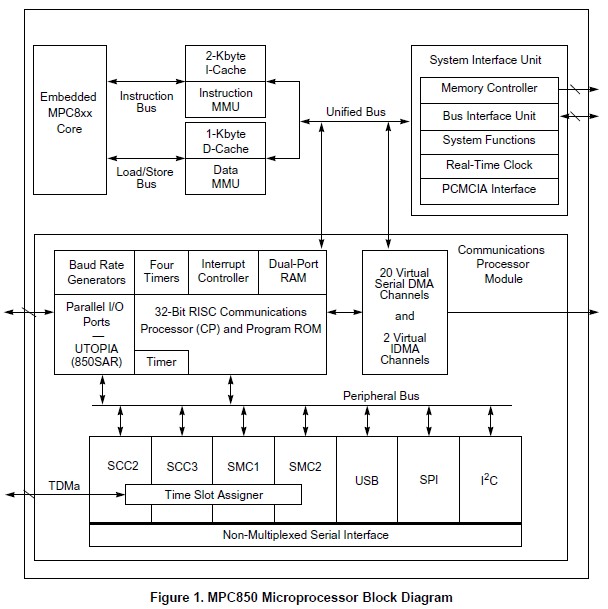

The XPC850SRZT80BT is a versatile, one-chip integrated microprocessor and peripheral combination that can be used in a variety of controller applications, excelling particularly in communications and networking products. The XPC850SRZT80BT, which includes support for Ethernet, is specifically designed for cost-sensitive, remote-access, and telecommunications applications. It is provides functions similar to the MPC860, with system enhancements such as universal serial bus (USB) support and a larger (8-Kbyte) dual-port RAM.

Parametrics

Maximum ratings: (1)VDDH: -0.3 to 4.0 V; (2)VDDL: -0.3 to 4.0 V; (3)KAPWR: -0.3 to 4.0 V; (4)VDDSYN: -0.3 to 4.0 V; (5)Input voltage, Vin: GND-0.3 to VDDH + 2.5 V V; (6)Junction temperature, Tj: 0 to 95 (standard); -40 to 95 (extended)℃; (7)Storage temperature range, Tstg: -55 to +150 ℃.

Features

Features: (1)Embedded single-issue, 32-bit MPC8xx core (implementing the PowerPC architecture) with thirty-two 32-bit general-purpose registers (GPRs); (2)Advanced on-chip emulation debug mode; (3)Data bus dynamic bus sizing for 8, 16, and 32-bit buses; (4)Completely static design (00 MHz operation); (5)System integration unit (SIU); (6)Four independent baud-rate generators (BRGs): Can be connected to any SCC, SMC, or USB; Allow changes during operation; Autobaud support option; (7)Two SCCs (serial communications controllers); (8)Low-power support.
