Product Summary

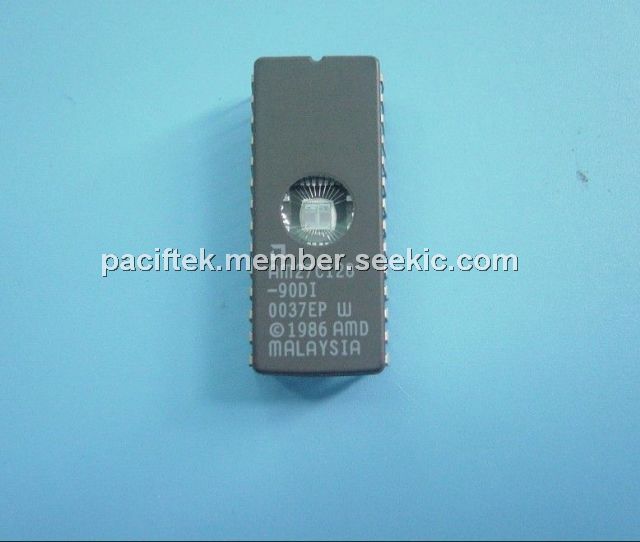

The AM27C128-90DI is a 128 kilobit (16k×8-bit) CMOS EPROM.
Parametrics
Absolute maximum ratings: (1)Ambient Temperature with Power Applied: –55℃ to +125℃; (2)Voltage with Respect to VSS, All pins except A9, VPP, VCC: –0.6V to VCC + 0.6V; (3)A9 and VPP: –0.6V to 13.5V; (4)VCC: –0.6V to 7.0V.
Features
Features: (1)Fast access time: Speed options as fast as 45 ns; (2)Low power consumption: 20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite. programming: Typical programming time of 2 seconds; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing: Both CMOS and TTL input/output compatibility; Two line control functions; (10)Standard 28-pin DIP, PDIP, and 32-pin PLCC packages.

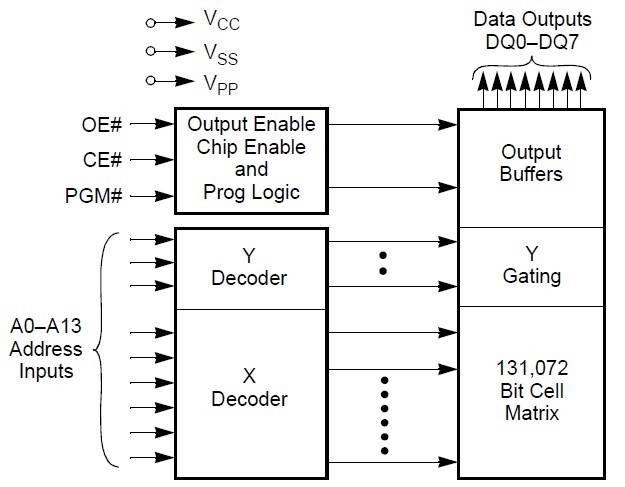

Diagrams
 |
