Product Summary

The National Semiconductor Geode GX1-300B-85-20 processor is a line of integrated processor specifically designed to power information appliances for entertainment, education, and business. Serving the needs of consumers and business professionals alike, it’s the perfect solution for IA (information appliance) applications such as thin clients, interactive set-top boxes, and personal internet access devices.

Parametrics

Absolute maximum ratings: (1)Operating Case Temperature: –65 to 110 ℃ Power Applied; (2)Storage Temperature: –65 to 150 ℃ No Bias; (3)Core Supply Voltage: 2.31 V; (4)I/O Supply Voltage: 3.6 V; (5)Voltage On Any Pin: –0.5 to 3.6 V; (6)Input Clamp Current: –0.5 to 10 mA Power Applied; (7)Output Clamp Current: 25 mA Power Applied.

Features

Features: (1)Packaging: 352-Terminal Ball Grid Array (BGA) or 320-Pin Staggered Pin Grid Array (SPGA); (2)0.18-micron four layer metal CMOS process; (3)Split rail design: Available 1.8V, 2.0V, or 2.2V core, 3.3V I/O interface; (4)Fully static design.

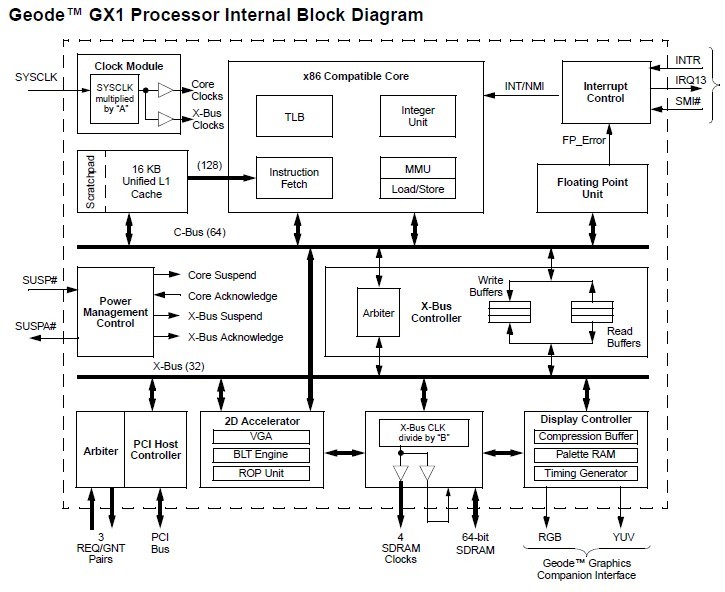

Diagrams
