Product Summary

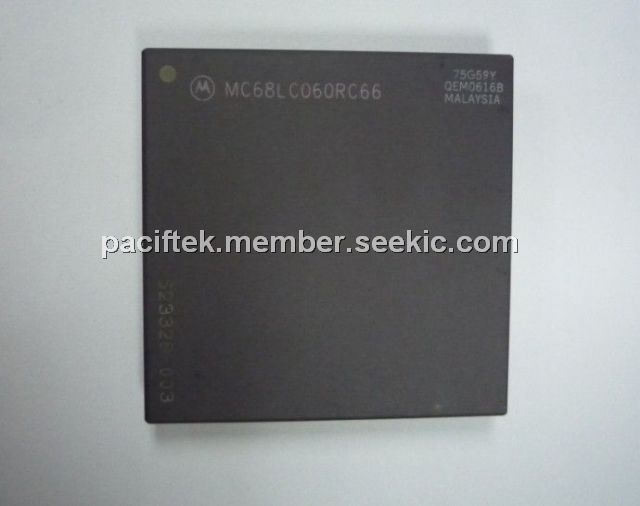

The MC68LC060RC66 microprocessor offers superscalar integer performance of over 100 MIPS at 66 MHz. The MC68LC060RC66 comes fully equipped with both a floating-point unit (FPU) and a memory management unit (MMU) for high-performance embedded control and desktop applications.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: -0.3 to 4.0 V; (2)Input Voltage: -0.5 to VCC+4 V; (3)Maximum Operating Junction Temperature: 110℃; (4)Minimum Operating Ambient Temperature: 0℃; (5)Storage Temperature Range: -55 to 150℃.
Features
Features: (1)1.6-1.7 Times the MC68040 Performance at the Same Clock Rate with Existing Compliers. 3.2-3.4 Times the Performance of a 25 MHZ MC68040; (2)Harvard Architecture with Independent, Decoupled Fetch and Execution Pipelines; (3)Branch Prediction Logic with a 256-Entry, 4-Way Set-Associative, Virtual-Mapped Branch Cache for Improved Branch Instruction Performance; (4)A Superscalar Pipeline and Dual Integer Execution Units Achieving Simultaneous, but not Out-of-Order Instruction Execution.

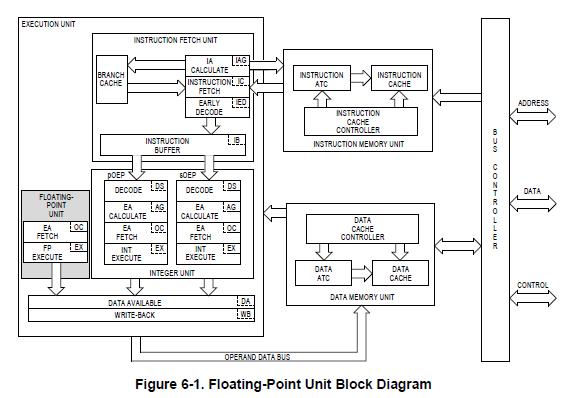

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68LC060RC66 |
Freescale Semiconductor |
Microprocessors (MPU) 32B W/ CACHE MMU |
Data Sheet |
|
|
||||||
