Product Summary

The MAX II EPM240ZM100C7N instant-on, non-volatile CPLD is based on a 0.18-μm, 6-layer-metal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits.

Parametrics

Absolute maximum ratings: (1)Internal supply voltage: –0.5 to 4.6 V With respect to ground; (2)I/O supply voltage: –0.5 4.6 V; (3)DC input voltage: –0.5 4.6 V; (4)DC output current, per pin: –25 to 25 mA; (5)Storage temperature: –65 to 150 ℃; (6)Ambient temperature Under bias: –65 to 135 ℃; (7)Junction temperature TQFP and BGA packages under bias: 135 ℃.

Features

Features: (1)Low-cost, low-power CPLD; (2)Instant-on, non-volatile architecture; (3)Standby current as low as 25 μA; (4)Provides fast propagation delay and clock-to-output times; (5)Provides four global clocks with two clocks available per logic array block (LAB); (6)UFM block up to 8 Kbits for non-volatile storage.

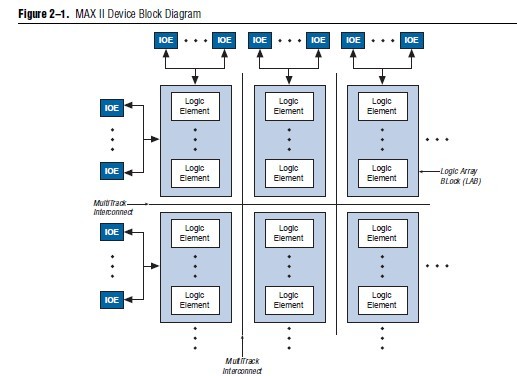

Diagrams
