Product Summary

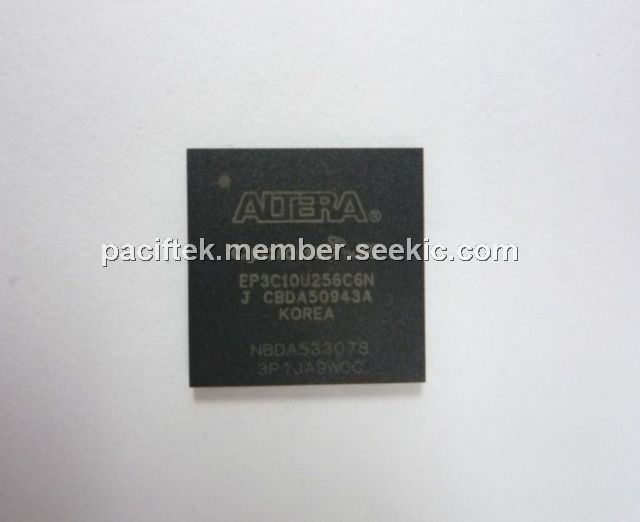

The EP3C10U256C6N is a Cyclone III Device.

Parametrics

Absolute maximum ratings: (1)Supply voltage for internal logic: –0.5 to 1.8 V; (2)Supply voltage for output buffers: –0.5 to 3.9 V; (3)VCCA; (4)Supply voltage (analog) for phase-locked loop (PLL) regulator: –0.5 to 3.75 V; (5)Supply voltage (digital) for PLL: –0.5 to 1.8 V; (6)DC input voltage: –0.5 to 3.95 V.

Features

Features: (1)DC output current, per pin: –25 to 40 mA; (2)Electrostatic discharge voltage using the human body model: ±2000 V; (3)Electrostatic discharge voltage using the charged device model: ±500 V; (4)Storage temperature: –65 to 150 ℃; (5)Operating junction temperature: –40 to 125 ℃.

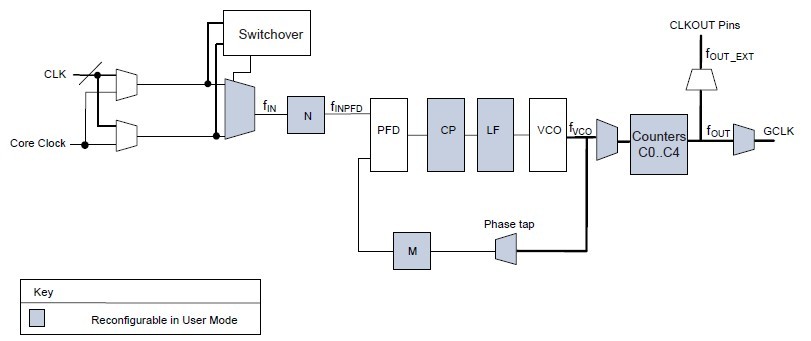

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP3C10U256C6N
EP3C10U256C6N

IC CYCLONE III FPGA 10K 256-UBGA
Data Sheet
0-1: $23.22
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP3C10E144C7
EP3C10E144C7

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $13.86
EP3C10E144C7N
EP3C10E144C7N

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $13.86
EP3C10E144C8
EP3C10E144C8

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $11.52
EP3C10E144C8N
EP3C10E144C8N

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $11.52
EP3C10E144I7
EP3C10E144I7

IC CYCLONE III FPGA 10K 144 EQFP
Data Sheet
0-120: $16.86
EP3C10E144I7N
EP3C10E144I7N

IC CYCLONE III FPGA 10K 144 EQFP
Data Sheet
0-1: $17.28
