Product Summary

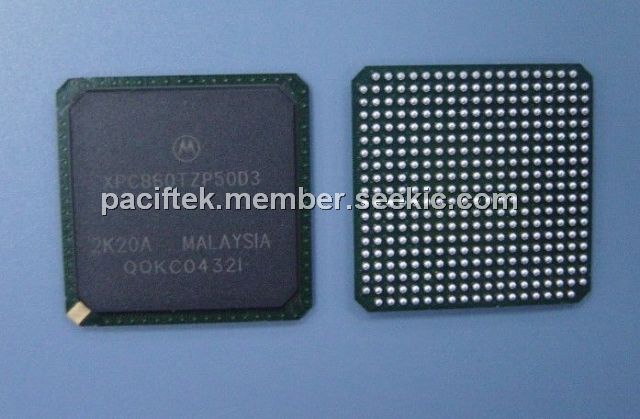

The XPC860TZP50D3 Quad Integrated Communications Controller (PowerQUICC) is a versatile one-chip integrated microprocessor and peripheral combination designed for a variety of controller applications. It particularly excels in both communications and networking systems. The PowerQUICC unit is referred to as the MPC860 in this manual. The XPC860TZP50D3 is a derivative of Motorola’ s MC68360 Quad Integrated
Communications Controller (QUICC), referred to here as the QUICC, that implements the PowerPC architecture.
Parametrics
Maximum tolerated ratings: (1)VDDH: -0.3 to 4.0 V; (2)VDDL: -0.3 to 4.0 V; (3)KAPWR: -0.3 to 4.0 V; (4)VDDSYN: -0.3 to 4.0 V; (5)Input voltage, Vin: GND-0.3 to VDDH V; (6)Junction temperature, Tj: 0 to 95 (standard); -40 to 95 (extended)℃; (7)Storage temperature range, Tstg: -55 to +150 ℃.
Features
Features: (1)Embedded single-issue, 32-bit MPC8xx core (implementing the PowerPC architecture) with thirty-two 32-bit general-purpose registers (GPRs); (2)Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits); (3)32 address lines; (4)Operates at up to 80 MHz; (5)Memory controller (eight banks); (6)10/100 Mbps Ethernet support, fully compliant with the IEEE 802.3u Standard (not available when using ATM over UTOPIA interface); (7)ATM support compliant with ATM forum UNI 4.0 specification; (8)Four baud-rate generators (BRGs): Independent (can be connected to any SCC or SMC); Allow changes during operation; Autobaud support option; (9)Four serial communications controllers (SCCs).

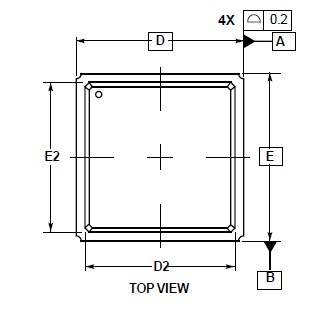

Diagrams
 |
