Product Summary
The TN80C196KC20 16-bit microcontroller is a high performance member of the MCSE 96 microcontroller family. The TN80C196KC20 is an enhanced 80C196KB device with 488 bytes RAM, 16 and 20 MHz operation and an optional 16 Kbytes of ROM/OTPROM. Intel’ s CHMOS III process provides a high performance processor along with low power consumption. The TN80C196KC20 is featured with 16 Kbytes on-chip OTPROM.
Parametrics
Absolute maximum ratings: (1)Ambient Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage On Any Pin to VSS: -0.5V to +7.0V; (4)Voltage from EA or VPP to VSS or ANGND: +13.00V; (5)Power Dissipation: 1.5W.
Features
Features: (1)16 and 20 MHz Available; (2)488 Byte Register RAM; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)Peripheral Transaction Server; (6)1.4 us 16 x 16 Multiply (20 MHz); (7)2.4 us 32/16 Divide (20 MHz); (8)Powerdown and Idle Modes; (9)Five 8-Bit I/O Ports; (10)16-Bit Watchdog Timer; (11)Extended Temperature Available; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)3 Pulse-Width-Modulated Outputs; (18)Four 16-Bit Software Timers; (19)8- or 10-Bit A/D Converter with Sample/Hold; (20)HOLD/HLDA Bus Protocol; (21)OTPROM One-Time Programmable Version.

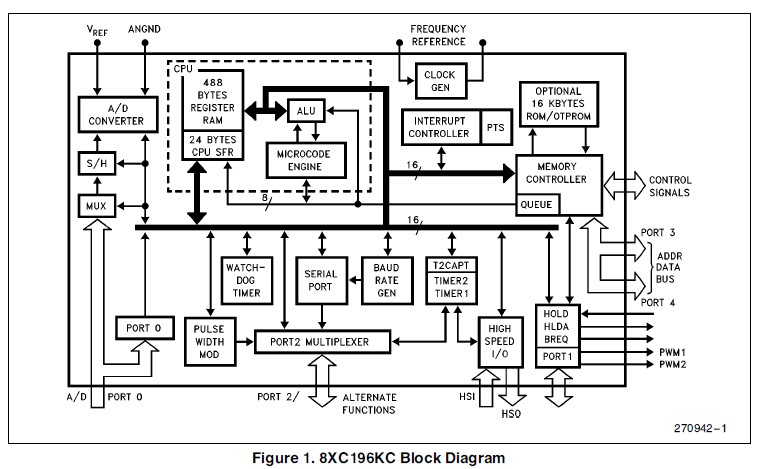

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TN80C196KC20 |
|
IC MPU 16BIT 5V 20MHZ EXT 68PLCC |
Data Sheet |
Negotiable |
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
TN805 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
 |
TN805-600B |
STMicroelectronics |
SCRs 8.0 Amp 600 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||
|
TN805-600B-TR |
STMicroelectronics |
SCRs 8.0 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||||
|
TN805-800B |
STMicroelectronics |
SCRs 8.0 Amp 800 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||
|
TN805-600H |
STMicroelectronics |
SCRs 8.0 Amp 600 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||
|
TN80960SA16 |
|
IC MPU I960SA 16MHZ 84-PLCC |
Data Sheet |
|
|
||||||||||||||
