Product Summary

The AD7846KN is a 16-bit DAC constructed with the Analog Devices, Inc., LC2MOS process.

Parametrics

Absolute maximum ratings: (1)VDD to DGND: -0.4V to +17V; (2)VCC to DGND: -0.4V, VDD + 0.4V, or +7V (whichever is lower); (3)VSS to DGND: +0.4V to -17V; (4)VREF+ to DGND: VDD + 0.4V, VSS - 0.4V; (5)VREF-to DGND: VDD + 0.4V, VSS - 0.4V; (6)VOUT to DGND: VDD + 0.4V, VSS - 0.4V, or ±10V(whichever is lower); (7)RIN to DGND: VDD + 0.4V, VSS - 0.4V; (8)Digital Input Voltage to DGND: -0.4V to VCC + 0.4V; (9)Digital Output Voltage to DGND: -0.4V to VCC + 0.4V.

Features

Features: (1)16-bit monotonicity over temperature; (2)±2 LSBs integral linearity error; (3)Microprocessor compatible with readback capability; (4)Unipolar or bipolar output; (5)Multiplying capability; (6)Low power (100 mW typical).

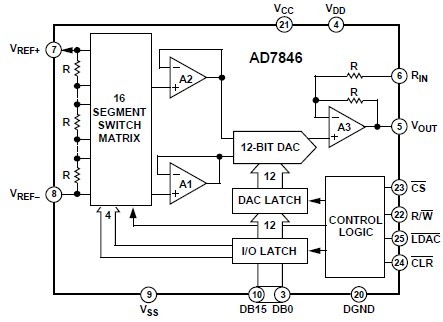

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

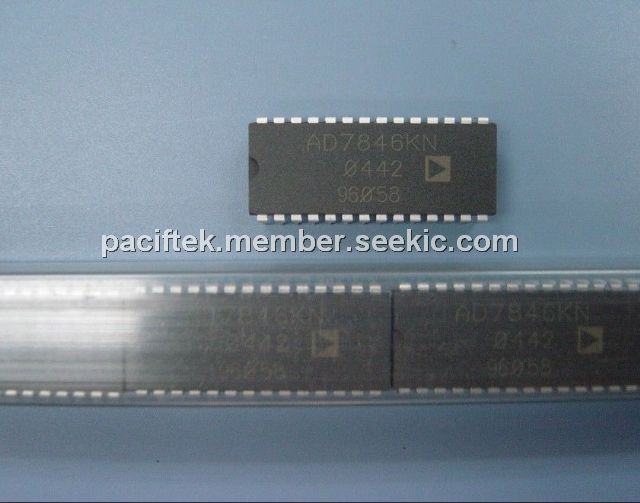

AD7846KN
AD7846KN

IC DAC 16BIT LC2MOS VOUT 28-DIP
Data Sheet
0-13: $28.58
AD7846KNZ
AD7846KNZ

IC DAC 16BIT LC2MOS VOUT 28-DIP
Data Sheet
0-1: $27.66
1-10: $26.03
10-100: $23.27
100-250: $21.96
250-500: $21.69
